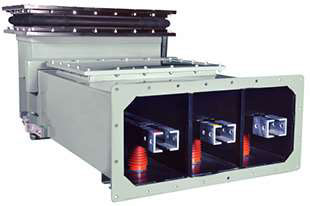

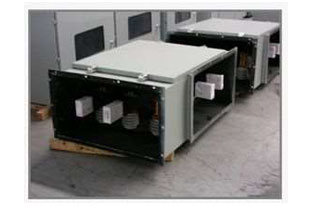

We are offering a complete range of MV Bus ducts that are manufactured using Mild Steel/Aluminium. These bus ducts will be used between Generator and Transformer, Generator and VCB Panel. Complete accessories like Adapter boxes, Vertical /Horizontal bends, Copper/Aluminium flexibles at termination ends and at straight run, Silicagel breathers, Wall frame assembly, Space heater with thermostats, Rubber bellows for expansion at termination ends/straight run, Galvanised steel support structures.
Current rating above 2500A, we will use Aluminium channels as conductor for better current carrying capacity. Hence the skin effect will be reduced.
Some of the salient features of our Busducts are:
Voltage Rating-15kV/12kV/7.2kV/3.3kV
Current Rating-Up to 4000 Amps/SC rating-50kA
Installation-Indoor/Outdoor/Impulse-Up to 95kVP
Construction material-Aluminium/Mild Steel
Busbar Material-Copper/Aluminium
Support structure-MS Painted/Hot dip Galvanized
Busbar types-Flat type/Channel type
Segregation Material-Al/MS/FRP
EPDM Rubber bellow for expansion

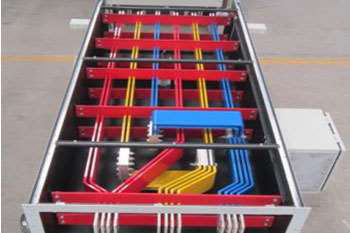

LV NON-SEGREGATED PHASE BUSDUCT
We offer complete range of LV Bus ducts that are manufactured using Mild Steel/Aluminium. These bus ducts will be used between Transformer and LV Panel, Transformer and APFC Panel.
We offer complete accessories like Adapter boxes, Vertical/Horizontal bends, Copper/Aluminium flexibles at termination ends and at straight run, Silicagel breathers, Wall frame assembly, Space heater with thermostats, Rubber bellows for expansion at termination ends/straight run, Galvanised steel support structures.
