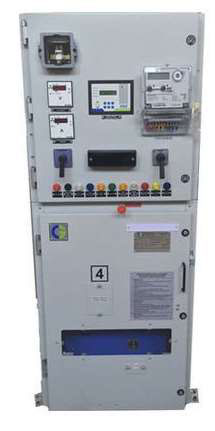

11kV & 33kV HT METERING PANEL

HT Metering panels widely used in various Substations. This panel comprises of Current Transformer, Voltage Transformers, Wall through Bushings, Insulators & Tri-vecto Meters. We can make these Panels including Load Break Switch also as per customer specific requirements.

Our panels are constructed using superior quality sheet steel and all the fabricated parts are thoroughly cleaned using pre-treatment process and are then coated with required shade. The panel doors are fully gasket for protection against dust.

Some salient features of our Panels are:
  • Separate Incoming & Outgoing compartments
  • Cabling height as per latest standard
  • Clearance & Seepage distance as per latest standard
  • Sturdy Enclosure construction to withstand Mechanical forces
  • Copper/ Aluminium bus bars as per Short time current rating
  • Suitable design for Outdoor atmosphere
  • Ingress Protection:55, Catogory-2
